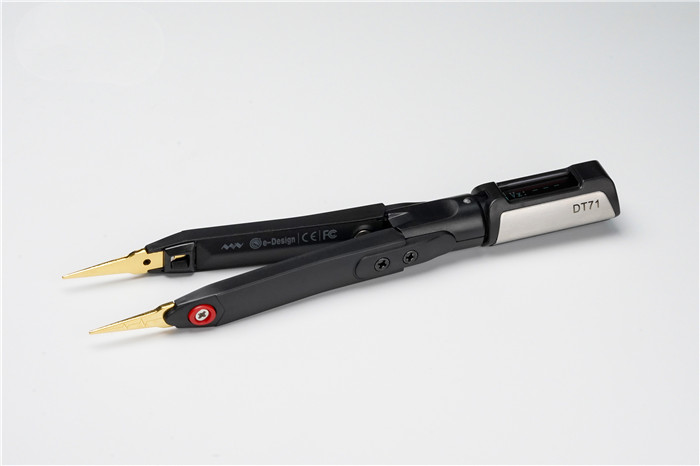

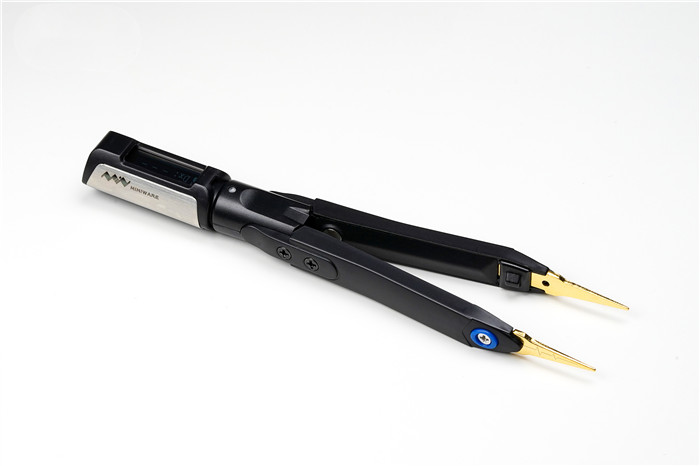

DT71 Mini Digital Tweezers is a tool of multi-function measurements with full differential input measurement；
DT71 has a unique ternary structure, which can be separated into controller, testing arms and tweezer tips, flexible to be replaced and combined;
360° rotatable with OLED screen, visible at all angles;
Smart gesture recognition, automatically identify left/right hand operation and adjust screen display;
Hidden touch button, simple operation with only a light touch;
Test arms use magnetic elasticity to provide easy clipping, ergonomic and patented design;
Built-in dual lithium batteries in test arms, balancing both arms and provide a longer standby time;
Several kinds of gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages.

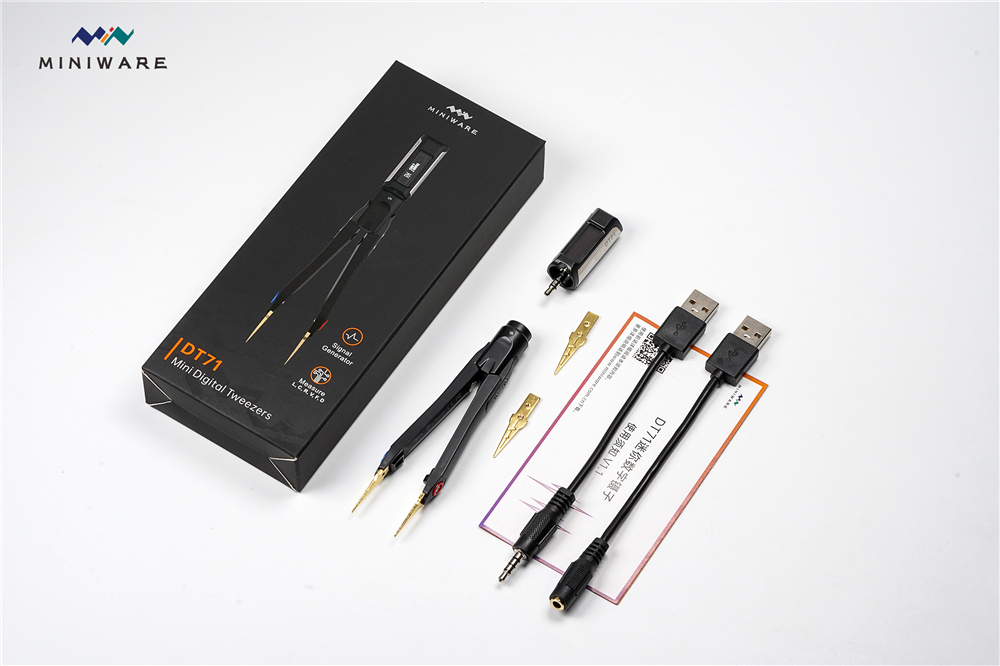

DT71 Controller ✖ 1
Test Arms ✖ 1
Tweezer Tips ✖ 2
Data Cable ✖ 1
Charging Cable ✖ 1
Safety Instructions ✖ 1
Gross Weight：139g（including package）
Packing Size：180mm ✖ 75mm ✖ 28mm
| Operation | Hidden touch button | Continuity and Diode Testing | Yes |
| Operation Time | 10 hrs (in continuous operation) | Automatic Identification | Yes |
| Charging Time | 2 hrs | Designated Measurements |
Yes |
| Screen | OLED Screen | Screen Resolution |
96 ✖ 16 |
| Dimension | 106mm（Test Arms）+ 47mm（Controller） | Net Weight | 22g（Control+Test Arms） |
| Power Interface | 3.5mm audio | Data Transfer Interface | USB Type-C Port |
| Certification | Compliant with EU Certification CE FCC | Battery | 50mAh |
